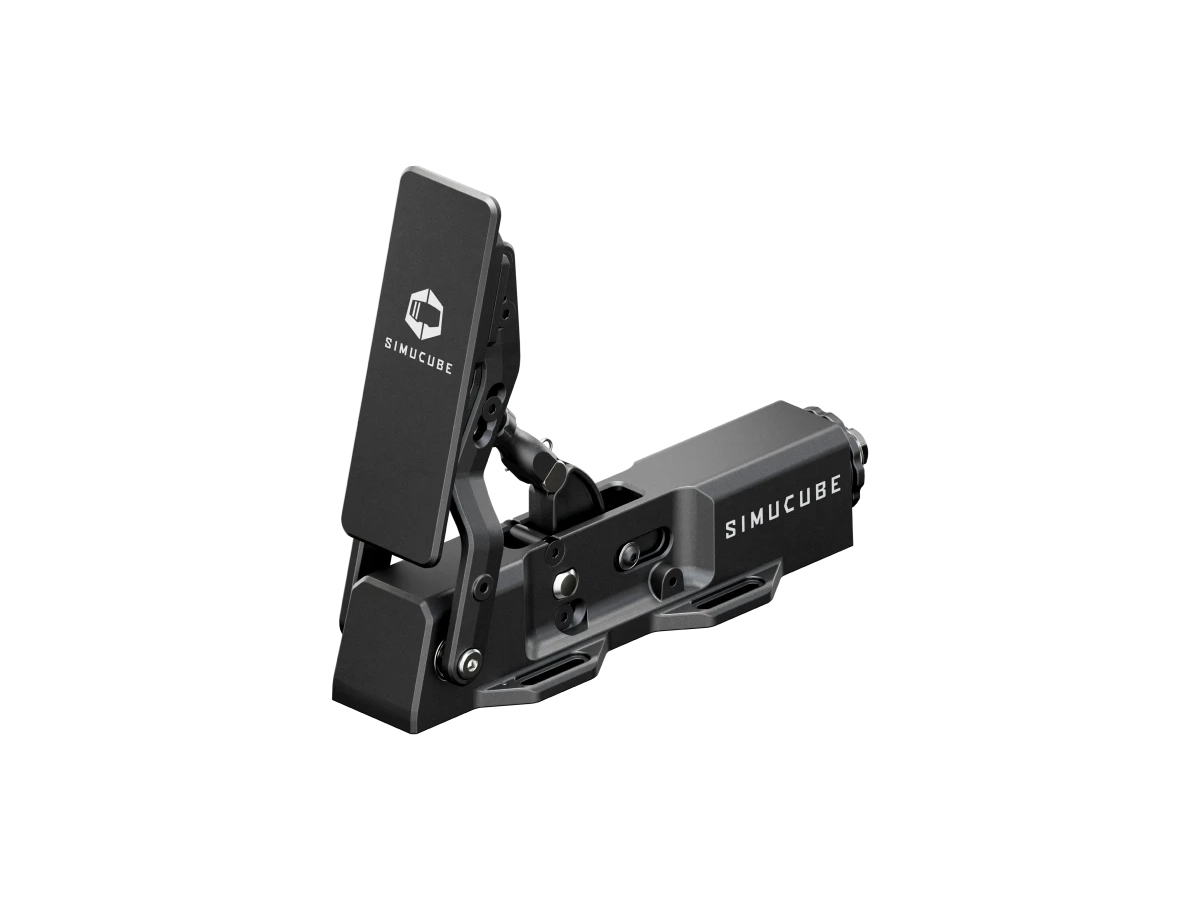

imucube Co-Pedal is a passive pedal that can be configured as either a throttle or a clutch, using a swappable Arc profile mechanism to physically change its behavior between the two. It uses a Hall angle sensor for position-based measurement rather than a force-based load cell, eliminating dead zones across the pedal's travel. It is designed to pair with Simucube ActivePedal Pro or ActivePedal Ultimate and is not a standalone unit; it connects via a 60cm RJ25 cable. A single Co-Pedal can only be configured as either throttle or clutch at a time, so two units are needed to run both. Adjustable travel ranges from 30mm to 70mm, with a rest angle of 4–14 degrees and a preload range of 0–13mm (roughly 0–5 kg). Maximum force is rated at 11 kg as a throttle and 25 kg as a clutch, both measured at full preload and 70mm travel. It measures 242 × 83 × 308mm and weighs 1.6 kg in either configuration. It ships preassembled as a throttle, with a clutch pedal face, clutch spring, and clutch Arc profile included for switching configurations, along with mounting hardware, adjustment tools, and a quick start guide. It's backed by a 3-year warranty.
